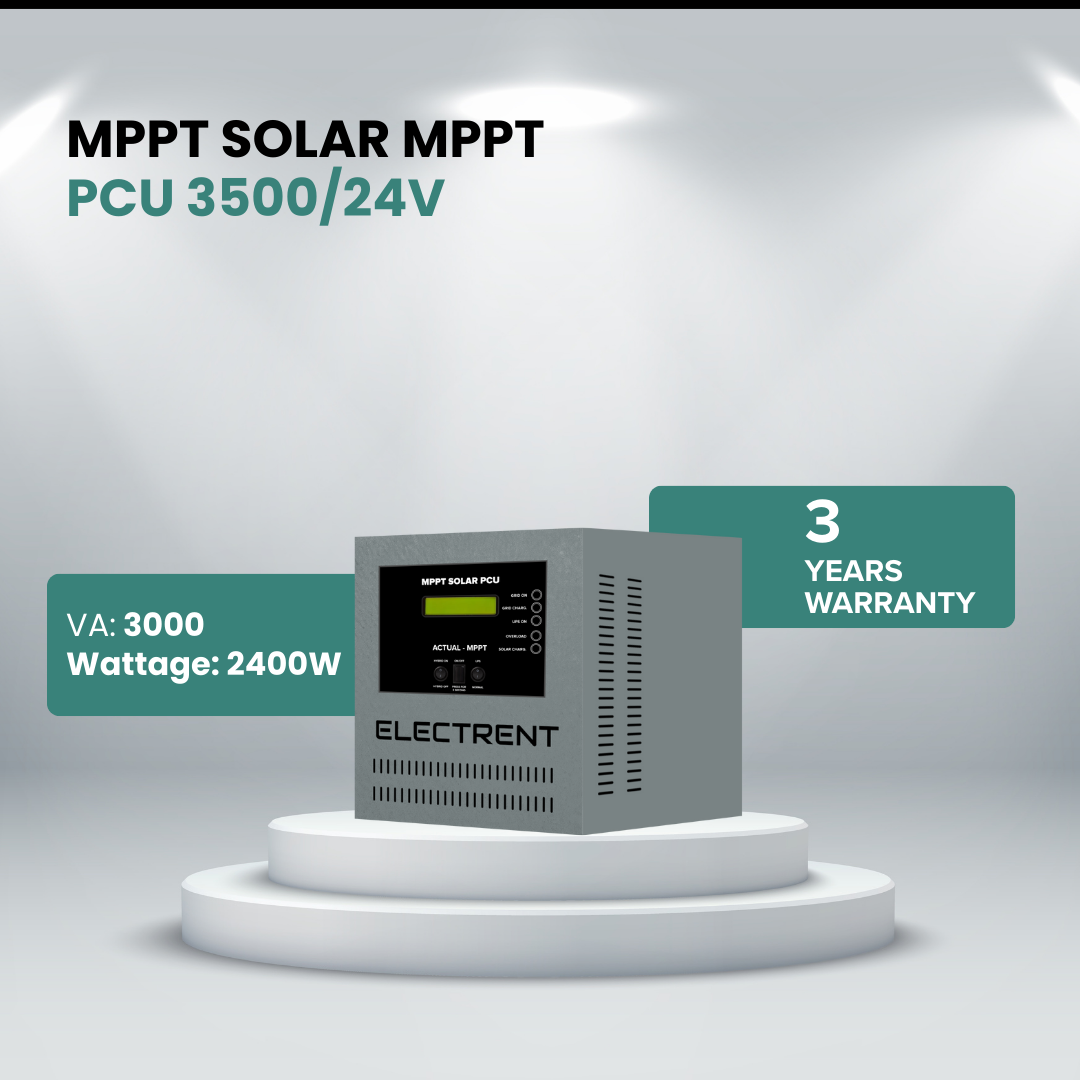

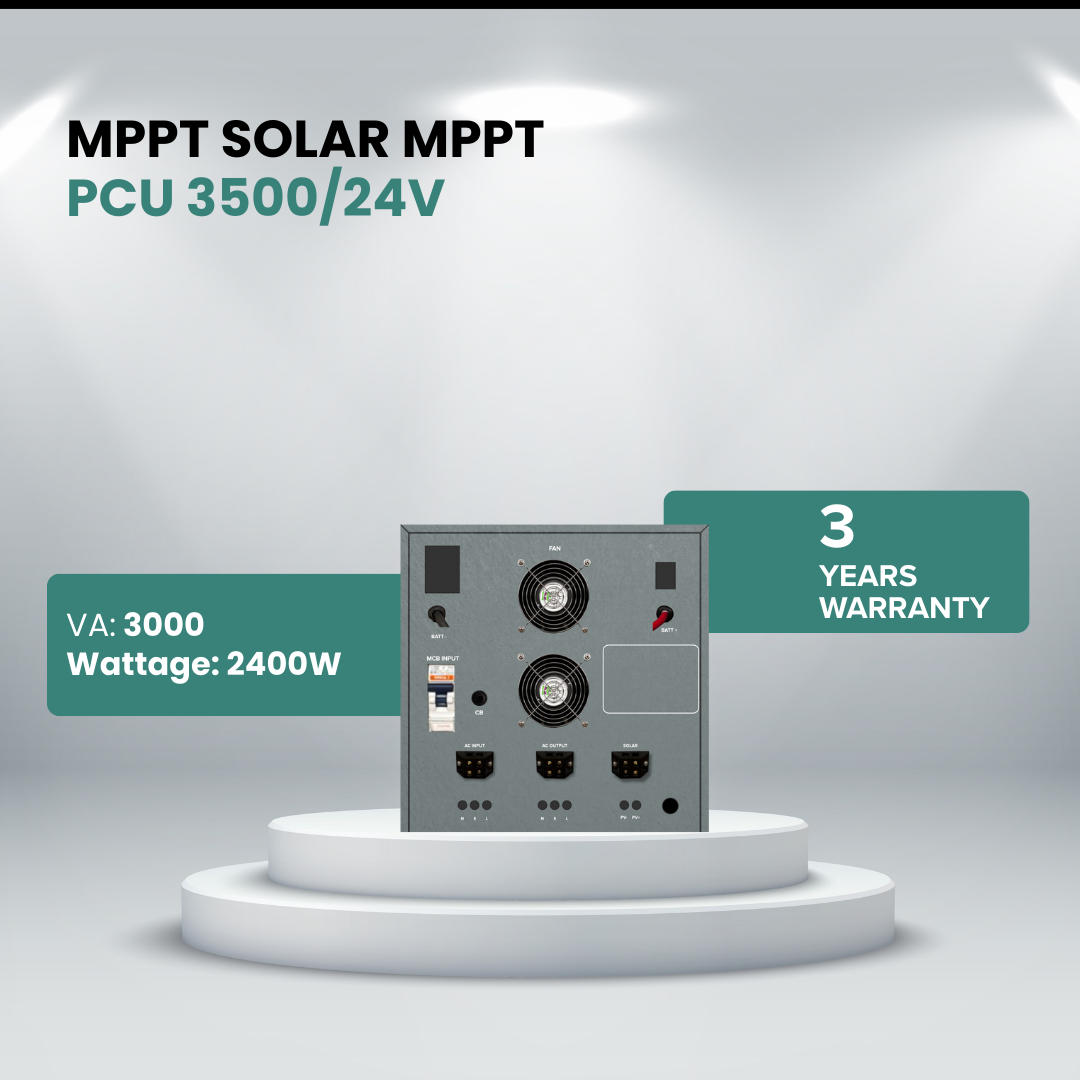

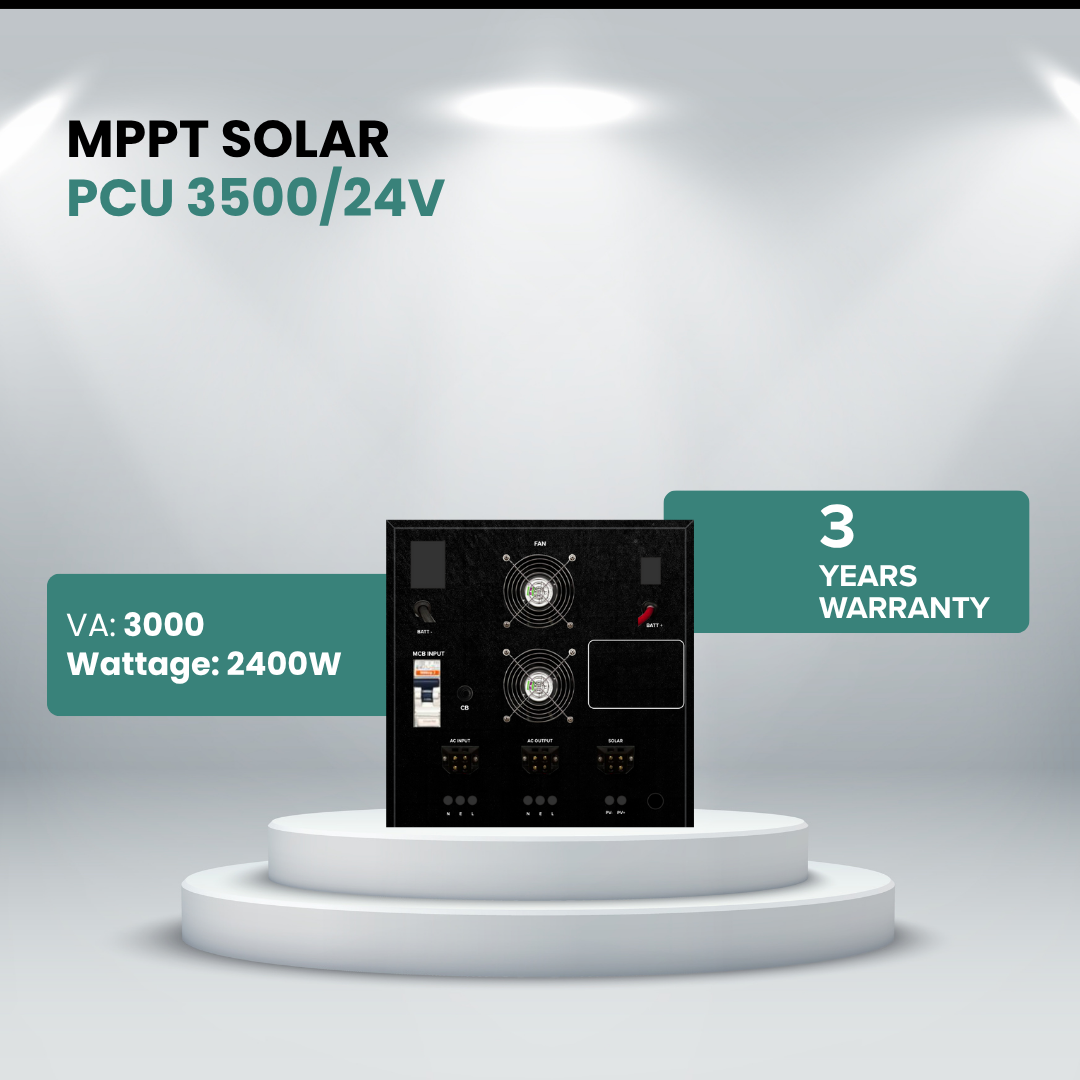

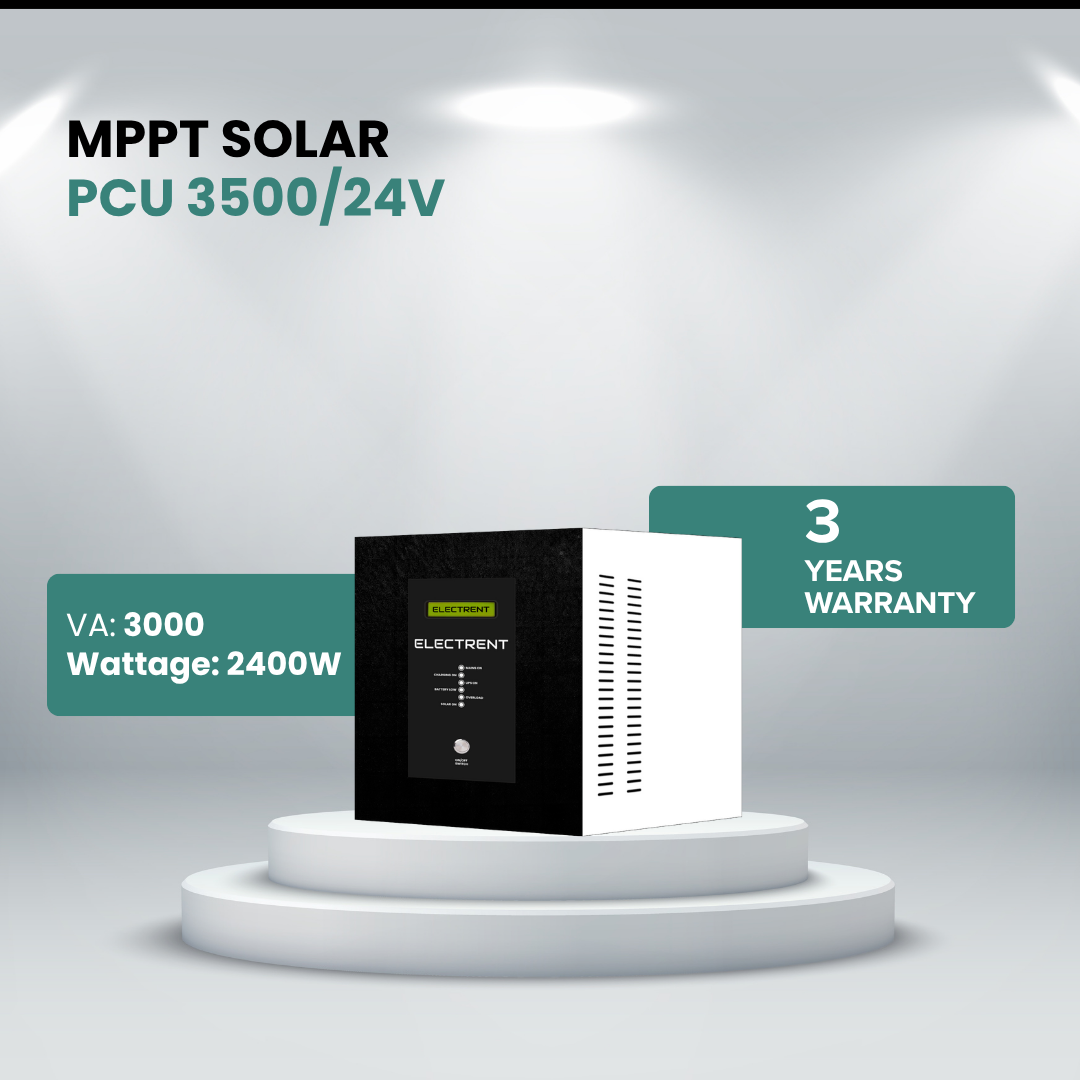

Solar Hybrid MPPT PCU 3500/24V

1. What is a Solar Hybrid MPPT PCU and how does it work?

A Solar Hybrid MPPT PCU (Power Conditioning Unit) is an advanced system that integrates solar power, battery storage, and grid supply into one unit. It intelligently manages power flow by prioritising solar energy, storing excess energy in batteries, and automatically switching to grid power when needed, ensuring continuous and efficient electricity supply.

2. What are the advantages of choosing a 24V hybrid MPPT PCU over a regular inverter?

A 24V hybrid MPPT PCU offers several advantages:

• Better efficiency with MPPT technology (up to 97.5%)
• Solar compatibility for reduced electricity bills
• Smart power management between solar, grid, and battery
• Higher load handling compared to basic inverters
• Improved battery performance and lifespan

It’s a more advanced and energy-efficient solution than traditional inverters.

3. How much solar panel capacity can the Solar Hybrid MPPT PCU 3500/24V support?

This model supports up to 2500Wp (2.5kW) of solar panel input, allowing you to build a robust solar setup that can significantly reduce dependency on grid electricity.

4. Can this MPPT PCU be used with existing batteries or does it require a specific battery type?

Yes, it is compatible with most standard batteries, including lead-acid and compatible solar batteries configured in a 24V system (dual batteries). This flexibility makes it easy to integrate with your existing setup.

5. Does this solar hybrid PCU support automatic switching between solar, battery, and grid power?

Yes, the system features automatic source switching, seamlessly transitioning between solar, battery, and grid power based on availability and load requirements, ensuring uninterrupted power without manual intervention.

6. What appliances and load capacity can this 3500 VA hybrid solar PCU handle?

With a 3100VA capacity, it can comfortably support household and small business loads such as lights, fans, televisions, refrigerators, computers, and small appliances. It is suitable for running multiple devices simultaneously, depending on total load consumption.

7. What safety and protection features are included in this Solar Hybrid MPPT PCU?

The unit includes a comprehensive protection system, such as:

• Overload and short circuit protection
• Battery overcharge and deep discharge protection
• Over-temperature protection with cooling fan
• Surge and fault protection
• Alarm integration for system alerts

These features ensure safe and reliable operation.

8. How efficient is the MPPT solar charging compared to traditional charge controllers?

The MPPT (Maximum Power Point Tracking) technology delivers up to 97.5% efficiency, which is significantly higher than traditional PWM controllers. This means faster battery charging, better solar utilisation, and improved overall system performance, especially during low sunlight conditions.
